Choosing between 2-piece and 3-piece tin cans is an important decision for food packaging, beverage packaging, and other metal packaging applications. The right structure depends on your product, can dimensions, filling and processing conditions, coating requirements, production volume, and packaging line compatibility.

In this guide, we compare 2-piece vs. 3-piece tin cans, explain their structural differences, and outline the key factors to consider when sourcing tinplate cans for your business. Understanding these differences can help you communicate more effectively with a tin can manufacturer and select a packaging solution that meets your technical and commercial requirements.

Quick answer: A 2-piece tin can consists of a body and bottom formed as one piece, plus a separate top end. A 3-piece tin can consists of a separate body, top end, and bottom end. Neither structure is universally better; the right choice depends on the intended application and production requirements.

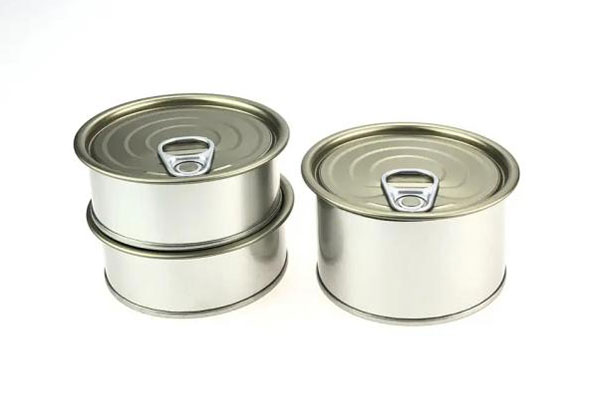

1. What Is a 2-Piece Tin Can?

A 2-piece tin can is a metal container made from two main components: a body with an integral bottom, and a separate top end. The body and bottom are formed from a single piece of metal, so the can does not have a conventional longitudinal body seam or a separate bottom-end seam.

Depending on the design and manufacturing process, the body may be produced through drawing or other forming operations. The top end is then attached using an appropriate closing process.

Key Characteristics of 2-Piece Tin Cans

• Integrated body and bottom: The body and bottom are formed as one component.

• Fewer body-related seams: There is no conventional longitudinal body seam or separate bottom-end joint.

• Forming-dependent design: Can shape, dimensions, and production feasibility depend on forming technology and tooling.

• Coating integrity matters: Forming operations must be compatible with the metal and coating system to help protect the packaged product.

• Closure compatibility: The top end and closing method must match the can design and filling requirements.

When Should You Consider a 2-Piece Tin Can?

A 2-piece design may be suitable when the required can geometry can be produced efficiently using the available forming process and tooling. It is worth evaluating for applications that benefit from an integrated body and bottom, subject to the product's filling, processing, storage, and sealing requirements.

Before selecting this structure, confirm the required diameter, height, wall characteristics, material specifications, internal coating, and compatibility with the intended production line.

2. What Is a 3-Piece Tin Can?

A 3-piece tin can is constructed from three separate components: a cylindrical body, a top end, and a bottom end. The body is typically formed by rolling a metal sheet or blank into a cylinder and joining its edges to create a longitudinal body seam. The top and bottom ends are then attached through suitable seaming operations.

For tinplate packaging, the body seam and end seams are important areas for quality control. The joining method, coating protection, dimensions, and sealing performance must all be considered in relation to the intended application.

Key Characteristics of 3-Piece Tin Cans

• Three separate components: The body, top end, and bottom end are manufactured separately.

• Longitudinal body seam: The body includes a seam where the sheet edges are joined.

• Flexible height options: The cylindrical body design can accommodate a range of heights, subject to equipment and design limits.

• Seam-focused quality checks: Body-seam integrity and end-seam performance are key inspection considerations.

• Material and coating selection: Tinplate grade, thickness, coating, and seam protection should suit the product and processing conditions.

When Should You Consider a 3-Piece Tin Can?

A 3-piece design may be a practical option when the required can dimensions, body height, production setup, and packaging specifications align with this construction method. It can also be worth evaluating when a project needs flexibility in cylindrical body dimensions.

However, the final choice should not be based on structure alone. Confirm the product's compatibility with the can material, joining process, internal coating, filling method, and sealing requirements.

3. 2-Piece vs. 3-Piece Tin Cans: Key Differences

The main difference between 2-piece and 3-piece tin cans is how the body and ends are constructed. The following table summarizes the key factors to evaluate when choosing between them.

Important: Neither structure is automatically stronger, safer, or more cost-effective in every application. Performance depends on the complete can design, material specifications, manufacturing quality, closure system, and intended use.

4. Advantages and Limitations of 2-Piece Tin Cans

Potential Advantages

• Integrated body and bottom: Eliminates the need for a separate bottom component and its body-to-bottom joint.

• Fewer conventional seams: The body does not have a longitudinal seam, which changes the sealing and inspection requirements.

• Consistent formed geometry: With suitable tooling and process control, the body and bottom can be produced as one integrated component.

• Application-specific design potential: The structure can be effective when the required dimensions and production process are compatible.

Potential Limitations

• Tooling requirements: Forming equipment and tooling must support the specified shape and dimensions.

• Design constraints: Some sizes, shapes, or material specifications may not be suitable for the available forming process.

• Forming-related inspection: Wall characteristics, deformation, and coating integrity need to be evaluated.

• Project economics: Tooling investment, order volume, material usage, and production efficiency all influence unit cost.

When evaluating a 2-piece tin can, ask the supplier to confirm whether your target dimensions, tinplate specifications, coating system, and required quantity are compatible with its production capabilities.

5. Advantages and Limitations of 3-Piece Tin Cans

Potential Advantages

• Flexible body dimensions: The body height can be adjusted within the capabilities of the manufacturing equipment and design.

• Separate component production: The body and ends can be manufactured and inspected as separate components before assembly.

• Established cylindrical construction: The design is suitable for projects where a rolled body and separately attached ends meet the packaging requirements.

• Application versatility: It can be considered for a variety of metal packaging formats, subject to material, product, and processing compatibility.

Potential Limitations

• Additional seam to control: The longitudinal body seam requires appropriate joining and inspection procedures.

• Coating protection: The seam area may require specific protection depending on the material, joining process, and product requirements.

• End-seam quality: Both ends must be attached using a suitable process to achieve the required closure performance.

• Production-line compatibility: The can dimensions and closure design must match the filling and seaming equipment.

A 3-piece tin can is worth considering when its construction offers a practical fit for your required dimensions and production process. As with 2-piece cans, final suitability should be confirmed through technical review and, where appropriate, sample testing.

6. How to Choose Between 2-Piece and 3-Piece Tin Cans

For B2B buyers, selecting the right tin can involves more than comparing the number of components. Review the following factors before requesting a quotation from a tin can supplier.

1. Identify the Product and Packaging Application

Start with the product that will be packed in the can. Food products, beverages, dry goods, and other contents may have different requirements for material compatibility, sealing, corrosion resistance, and storage conditions.

Describe the product, filling temperature, processing method, expected shelf life, and storage environment. These details help the supplier assess which can structure and specifications may be appropriate.

2. Confirm Can Dimensions and Shape

Provide the required can diameter, height, capacity, and shape. If you have an existing sample, technical drawing, or reference can, share it with the supplier.

The supplier should evaluate whether the specified dimensions can be produced using the proposed structure, tooling, and manufacturing process. Do not assume that every dimension is equally suitable for both 2-piece and 3-piece designs.

3. Evaluate Tinplate Material and Thickness

For tinplate cans, material selection affects forming performance, corrosion protection, mechanical properties, and manufacturing feasibility. The required material grade and thickness should be evaluated alongside the can dimensions, product contents, and processing conditions.

Ask the supplier to confirm the proposed tinplate specifications and whether they are suitable for the selected structure. Avoid choosing material thickness based only on the can's appearance or nominal capacity.

4. Check Internal Coating and Printing Requirements

Depending on the product and application, a tin can may require an internal coating to support product compatibility and corrosion protection. The coating must be suitable for the contents and any filling, heating, sterilization, or storage conditions involved.

For printed tinplate packaging, confirm the required artwork, colors, surface finish, printing area, and any applicable food-contact requirements. Also ask how coating protection is maintained during forming and seam production.

5. Confirm End and Closure Compatibility

The top end is a critical part of the packaging system. Depending on the application, you may need a specific opening style, easy-open end, or closure configuration. Confirm that the can body and end design are compatible with the intended closing equipment.

For food or beverage applications involving pressure, heat processing, or extended storage, obtain a technical assessment of the complete package rather than relying on the body structure alone.

6. Compare Total Cost, Order Volume, and Lead Time

When comparing quotations, consider the complete project cost rather than only the unit price. Material usage, tooling, printing, coating, production setup, inspection, packaging, shipping, and order quantity may all affect the final quotation.

Ask each tin can manufacturer to specify what is included in the quotation, any tooling charges, minimum order quantity, sample availability, production lead time, and packaging arrangements. The most suitable structure is the one that meets your technical requirements and commercial targets.

7. Why Material and Coating Matter in Tin Can Selection

Although the number of components determines whether a can is classified as 2-piece or 3-piece, the material and coating system are separate decisions. Both structures can be evaluated for suitable tinplate applications, depending on the design and manufacturing process.

Tinplate is steel sheet coated with tin. It is used in metal packaging because its properties can support forming, printing, and protective packaging applications when the material and coating are correctly specified.

When sourcing tinplate cans, consider these material-related factors:

• Base steel specifications: Confirm that the grade and mechanical properties suit the intended forming and application requirements.

• Tin coating: Confirm the required coating specifications based on product compatibility and corrosion considerations.

• Internal coating: Evaluate whether a suitable internal lacquer or coating is required for the contents and processing conditions.

• Printing and external finish: Specify artwork, color requirements, surface finish, and any protective external coating.

• Seam and forming protection: Confirm how the manufacturing process protects coated surfaces and controls critical joining areas.

For food packaging, material and coating suitability should be verified against the actual food-contact conditions and the regulations applicable in the destination market. Request relevant technical documentation from your supplier where required.

8. Questions to Ask a Tin Can Manufacturer Before Ordering

Before placing a bulk order, prepare a clear list of technical and commercial questions. This helps you compare suppliers consistently and reduces the risk of specification gaps.

• Can you produce the required can dimensions using a 2-piece or 3-piece structure?

• What tinplate grade, thickness, and coating specifications do you recommend for this application?

• Can you support the required can ends, opening style, and closure configuration?

• What inspection procedures are used for dimensions, coating quality, body seams, and end seams, as applicable?

• Can you provide samples or technical drawings for review before mass production?

• What are the minimum order quantity, tooling costs, and production lead time?

• What printing, customization, packaging, and shipping options are available?

• Can you provide the technical documents or compliance information required for the target market?

A reliable supplier should be able to explain the available production options, clarify technical limitations, and identify which specifications need further confirmation before quotation or mass production.

9. Tinplate Packaging Solutions from AINISITEL

AINISITEL serves buyers looking for tinplate materials and metal packaging-related solutions. When evaluating tinplate cans and components, the appropriate product configuration should be matched to your required dimensions, material specifications, coating or printing requirements, and intended application.

If you are comparing 2-piece and 3-piece tin cans for a new packaging project, prepare your product details and technical requirements before contacting the supplier. This makes it easier to determine which available structure and specifications are worth evaluating.

To discuss your project with AINISITEL, provide the following information:

• Product type and packaging application

• Preferred can structure, if already specified

• Can diameter, height, capacity, and technical drawings, if available

• Tinplate grade, thickness, coating, and printing requirements

• Required top end, opening style, and closure details

• Estimated order quantity, destination market, and expected delivery schedule

Sharing these details helps the supplier assess your requirements and determine the next steps for technical confirmation and quotation.

10. Frequently Asked Questions

What is the main difference between 2-piece and 3-piece tin cans?

A 2-piece tin can has a body and bottom formed as one component, plus a separate top end. A 3-piece tin can has a separate body, top end, and bottom end. The 3-piece design includes a longitudinal body seam, while a conventional 2-piece design does not.

Are 2-piece tin cans stronger than 3-piece tin cans?

Not necessarily. Strength and performance depend on the can design, material grade and thickness, forming process, seam quality where applicable, end construction, and intended operating conditions. Compare the complete specifications rather than judging by the number of components alone.

Which is better for food packaging: 2-piece or 3-piece tin cans?

Neither structure is automatically the better choice for every food product. The selection depends on the food's properties, filling and processing conditions, can dimensions, coating compatibility, closure performance, and applicable food-contact requirements. Consult your supplier about the suitability of the complete package.

Can both 2-piece and 3-piece cans be made from tinplate?

Yes. Both structures can be made from tinplate when the material and manufacturing process are suitable for the design. The terms “2-piece” and “3-piece” describe can construction, not whether the can is made from tinplate or aluminum.

How do I choose the right tin can size and thickness?

Start with the product, target capacity, required dimensions, filling and processing conditions, storage environment, and performance requirements. A tin can manufacturer can then assess suitable material specifications and structure based on your technical details and production needs.

What information should I provide to get a tin can quotation?

Provide the application, can dimensions, preferred structure, material and thickness requirements, coating or printing details, end and closure specifications, estimated quantity, destination market, and delivery expectations. Drawings, reference samples, or existing specifications can help the supplier evaluate your project more accurately.

Conclusion: Choose the Tin Can Structure That Fits Your Project

When comparing 2-piece vs. 3-piece tin cans, focus on structural design, dimensions, tinplate specifications, coating requirements, closure compatibility, production feasibility, and total project cost. A 2-piece can integrates the body and bottom, while a 3-piece can uses a separate body and two ends. Each structure has its own manufacturing considerations.

For B2B packaging procurement, the best decision comes from matching the can structure to the product and validating the complete packaging specifications with a qualified supplier. Prepare your dimensions, material requirements, target quantity, and application details before requesting a quotation.
